Fill Light & Live Broadcast Bracket Friction Hinges Design Guide

Introduction: The Hinge Nobody Thinks About Until It Fails

Let me paint you a picture.

A content creator is mid-stream — 5,000 viewers watching, engagement peaking — and the fill light slowly drifts downward. Not a dramatic collapse. Just a slow, agonizing creep that ruins the shot. The streamer reaches up to adjust it. The bracket feels loose, imprecise. The audience notices. The magic is gone.

I’ve seen this happen more times than I care to count. And in every single case, the root cause was the same: a friction hinge that was never properly designed for the application.

Fill lights and live broadcast brackets live in a uniquely demanding environment. They’re adjusted constantly — sometimes dozens of times per session. They carry loads that shift as users add phones, microphones, or other accessories. They operate in temperature swings from air-conditioned studios to hot, humid outdoor shoots. And they’re used by people who expect precision — not just “good enough.”

The friction hinge is the mechanical soul of any adjustable lighting bracket. Get it right, and your product feels premium, reliable, and professional. Get it wrong, and you’re looking at warranty returns, negative reviews, and a brand that feels cheap.

This guide is written for the engineers who specify these components, the procurement professionals who source them, and the business owners who understand that mechanical quality is a competitive differentiator.

Part 1: What Makes Fill Light & Broadcast Brackets Different

The Application Profile

Before we dive into torque calculations and material selection, let’s be clear about what we’re designing for.

A fill light bracket typically consists of:

• A base or clamp that attaches to a desk, tripod, or monitor
• An articulating arm or gooseneck that provides reach
• A mounting head that holds the light fixture
• Friction hinges at one or more pivot points

The live broadcast bracket adds another layer: it often holds not just a light, but also a phone or camera. This means the hinge must support variable loads — a light alone, a light plus a phone, or a light plus a heavy pro camera.

Key characteristics of this application:

The User Experience Factor

Here’s something that doesn’t show up on a spec sheet: feel.

A fill light bracket hinge that’s too stiff feels cheap and difficult to adjust. One that’s too loose feels flimsy and unreliable. The ideal hinge provides smooth, controlled resistance — enough to hold position firmly, but not so much that the user struggles to reposition it.

This is what engineers call haptics — the tactile feedback a user experiences when interacting with a mechanism. And in consumer-facing products like fill lights and broadcast brackets, haptics directly influence perceived quality.

As one industry expert puts it: “A friction hinge is not holding your panel — gravity is always trying to close it. The hinge is generating a counter-moment that slightly exceeds the gravitational moment at every point in the rotation”. Get that balance right, and the user experience is seamless. Get it wrong, and the product feels broken.

Part 2: Torque Calculation — Getting the Numbers Right

The Basic Formula

The fundamental equation for hinge torque is deceptively simple:

T = F × L

Where:

• T = required torque (N·m)
• F = force (in Newtons) = mass (kg) × 9.81
• L = perpendicular distance from hinge axis to center of gravity (meters)

But for a fill light bracket, it’s rarely that straightforward.

The more complete formula, accounting for angle, is:

T = W × L(CG) × cos(θ)

Where:

• W = weight of the assembly in Newtons
• L(CG) = distance from hinge axis to center of gravity
• θ = angle from vertical (peak torque occurs when the arm is horizontal, θ = 0°)

The Variable Everyone Gets Wrong

I’ve watched engineers spend days debugging a drooping light bracket. They calculated the torque correctly. They picked a hinge within spec. What they missed was the cable bundle.

Fill lights have power cables. Some have USB cables for phone charging. Some have audio cables for microphones. These cables add weight — typically 0.3 to 0.8 kg that nobody puts on the BOM. And they create drag: as the hinge rotates, cables flex and resist movement, effectively increasing the load.

The practical rule: When calculating required torque for a fill light bracket, add 20–30% margin to account for cable drag, manufacturing tolerances, and wear over time.

Real-World Example

Let’s walk through a typical scenario.

Scenario: A fill light bracket with a 1.2 kg light fixture mounted at the end of a 300 mm arm.

• Weight (W) = 1.2 kg × 9.81 = 11.77 N
• Distance (L) = 0.3 m (center of gravity assumed at end of arm)
• Peak torque required = 11.77 × 0.3 = 3.53 N·m

With 25% margin for cable drag and wear:

• Specified torque = 3.53 × 1.25 = 4.4 N·m

Critical note: If two hinges share the load (e.g., left and right pivot points), each hinge must provide half the total torque. But here’s the catch — mounting surfaces must be coplanar within 0.1 mm, or one hinge will absorb most of the load and wear faster.

Static vs. Dynamic Torque

This distinction is essential:

• Static torque: The resistance that holds the bracket stationary at a given angle
• Dynamic torque: The resistance during movement (opening or closing)

For fill light brackets, static torque is the primary design value — it determines whether the light stays where you put it. But dynamic torque matters for user feel. If static and dynamic torque are too different, the bracket will feel “sticky” — hard to start moving, then suddenly too loose.

Some premium hinges are designed with higher static than dynamic torque, providing firm holding with smooth movement. This is achieved through advanced friction material pairing.

Part 3: Material Selection — What Works and What Doesn’t

The Material Choices

For fill light and broadcast bracket hinges, you typically have three material paths:

1. Stainless Steel

• Pros: Excellent corrosion resistance, high strength, good wear characteristics
• Cons: Higher cost, can gall under high contact pressure
• Best for: Premium products, outdoor use, corrosive environments

2. Zinc Alloy with Plastic Coating

• Pros: Cost-effective, good dimensional stability, can be die-cast to complex shapes
• Cons: Lower strength than steel, coating can wear over time
• Best for: Mid-range products, indoor use

3. Glass-Filled Nylon

• Pros: Lightweight, corrosion-proof, good damping characteristics, torques up to 8 N·m
• Cons: Lower strength and temperature resistance than metal
• Best for: Lightweight brackets, consumer products

The Material Selection Trap

Here’s a counter-intuitive insight: expensive stainless steel pairs often gall under high contact pressure. In humid but non-corrosive indoor equipment, plated carbon steel with engineered friction pads can maintain torque stability longer than full stainless structures.

Engineers who choose stainless blindly often face torque fluctuation after 5,000 cycles. The key isn’t the material alone — it’s the material pairing and surface finish.

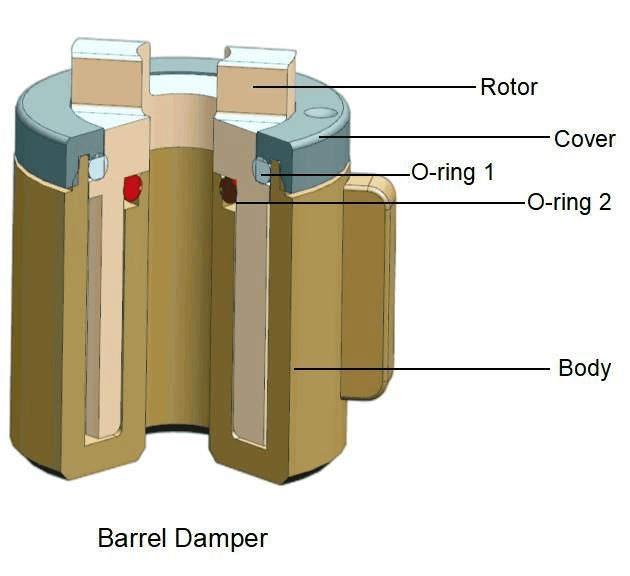

Friction Surface Engineering

The torque stability of a hinge depends on the friction interface. Common approaches include:

• Friction washers — stacked discs that create controlled resistance
• Polymer pads — engineered plastics that provide consistent friction
• Controlled metal contact — precisely machined surfaces with specific roughness

Surface roughness and contact pressure must remain controlled. If friction material creeps under temperature, torque drops. This is particularly relevant for fill lights that may be used outdoors or in hot studio environments.

Operating Temperature Range

Most torque hinges for lighting applications are rated for 0°C to 40°C (32°F to 104°F). For more demanding applications, heat-resistant variants are available up to 100°C (212°F).

If your product ships globally, consider temperature extremes. As one manufacturer notes: “Real products don’t live in labs. The torque value in the catalog is the holding force at 23°C under a smooth vertical load. Put that same hinge in a product that ships to a customer in northern Finland or southern Malaysia, and the operating conditions are different”.

Part 4: Lifespan Testing — What to Specify

Cycle Life Requirements

For fill light and broadcast brackets, industry standards typically require:

Some premium hinges are tested to 50,000 open/close cycles. TorqMaster International rates their friction hinges for 30,000+ cycles typical.

What to Test For

Cycle count alone is insufficient. You need to measure:

1. Torque decay — How much holding force is lost over the rated life? Acceptable decay is typically <20%.
2. Torque uniformity — Does resistance remain consistent across the full range of motion?
3. Wear patterns — Where are friction surfaces degrading?
4. Stick-slip behavior — Does the hinge develop “stickiness” or jerky movement?

The Tolerance Question

Every friction hinge torque rating has a tolerance band — typically ±15% for zinc alloy and ±20% for insert plastic molded parts.

This is one of the most consequential numbers in hinge selection. If your product requires 4.0 N·m of holding torque, and your hinge has a ±20% tolerance, you could receive hinges with as little as 3.2 N·m — which may not be enough to hold your light in position.

The solution: Specify a nominal torque high enough that even the lower tolerance bound meets your minimum requirement. Or work with a supplier that offers tighter tolerances.

Part 5: Adjustable vs. Fixed Torque Hinges

The Two Approaches

Fixed torque hinges have a preset resistance that cannot be changed. They’re simpler, less expensive, and more reliable over time. Southco’s constant torque hinges, for example, offer “adjustment-free performance over the life cycle of the application”.

Adjustable torque hinges allow resistance to be tuned during assembly or maintenance. This provides flexibility to accommodate manufacturing variations or different load configurations.

When to Choose Adjustable

Adjustable hinges make sense when:

• Your product supports a range of accessory weights
• You want to fine-tune feel during final assembly
• Field adjustment may be needed for service

Sugatsune offers torque-adjustable hinges from 0 to 4 N·m, with factory setting at 4.0 N·m. For pair use, they recommend using the same torque in both hinges.

When to Choose Fixed

Fixed hinges are the better choice when:

• The load is consistent across all units
• You want to minimize assembly steps
• Long-term reliability is critical (adjustment mechanisms can loosen over time)

Part 6: Common Failure Modes

What Goes Wrong

1. Gradual Sagging

This is the most common failure. The actual working torque demand exceeds the hinge’s rated torque by even 10%, and micro-wear reduces friction surface thickness. Torque declines slowly, and the bracket begins drifting downward.

Root causes: Incorrect center of gravity estimation, ignoring cable weight, parallel hinge misalignment.

2. Stick-Slip Motion

Stick-slip happens when static torque is significantly higher than dynamic torque. The hinge “sticks” during initial movement, then suddenly slips. This creates a jerky, unprofessional feel.

3. Torque Fluctuation

Inconsistent torque across the range of motion. Often caused by poor surface finish, uneven lubrication, or material creep under temperature.

4. Mounting Point Failure

As torque increases, stress on plastic mounting points increases. If the bracket becomes too stiff, it can crack the plastic housing. Recommendation: If using a high-torque hinge (>0.5 N·m), ensure the mounting area is reinforced with ribs or a metal backing plate.

Part 7: What This Means for Procurement

Specifying the Right Hinge

When sourcing friction hinges for fill light or broadcast brackets, specify:

1. Torque value — nominal, tolerance (±15–20%), and whether adjustable
2. Torque decay limit — maximum allowable over rated life (typically <20%)
3. Cycle life — minimum cycles at specified torque
4. Material — housing material, friction surface material, surface treatment
5. Operating temperature range
6. Mounting configuration — bolt-on, press-in, or custom

Questions to Ask Suppliers

• “What is your torque tolerance, and how do you verify it?”
• “Can you provide torque decay data over the rated cycle life?”
• “What temperature range has this hinge been tested to?”
• “Do you offer custom torque values or only standard options?”
• “What is your quality control process for torque calibration?”

The Business Case

A slightly more expensive hinge that maintains its torque over 50,000 cycles is almost always cheaper than a cheap hinge that fails after 10,000 cycles and generates returns, negative reviews, and brand damage.

Summary

The friction hinge is the mechanical foundation of any adjustable fill light or broadcast bracket. It determines whether your product feels premium or cheap, reliable or flimsy.

Proper design requires:

• Accurate torque calculation — including cable drag and safety margin
• Thoughtful material selection — matching friction surfaces, not just picking stainless
• Rigorous testing — measuring torque decay, not just cycle count
• Clear specifications — defining tolerance, temperature range, and acceptance criteria

For procurement, this means asking the right questions and not accepting vague claims. For engineering, it means understanding that a hinge isn’t just a component — it’s the interface between your product and the user’s experience. For business owners, it means recognizing that hinge quality is a competitive advantage.

The best time to validate your hinge specification was before you went to production. The second best time is now.

Frequently Asked Questions

Q1: What torque value do I need for a typical fill light bracket?

For a 1.2 kg light at 300 mm arm length, you need approximately 3.5 N·m of holding torque. Add 20–30% margin for cable drag, manufacturing tolerances, and wear, giving a specified torque of 4.2–4.5 N·m. For heavier lights or longer arms, calculate using T = W × L × cos(θ), where W = mass × 9.81.

Q2: How many cycles should a broadcast bracket hinge withstand?

Consumer-grade products typically require 10,000–20,000 cycles. Professional broadcast equipment should be rated for 50,000+ cycles. Premium suppliers offer hinges tested to 30,000+ cycles with torque decay <20% over life. Always request torque decay data, not just cycle count.

Q3: What’s the difference between static and dynamic torque, and why does it matter?

Static torque is the resistance that holds a bracket stationary. Dynamic torque is the resistance during movement. For fill light brackets, static torque determines holding ability; dynamic torque determines user feel. If static torque is significantly higher than dynamic torque, the hinge feels “sticky” — hard to start moving, then suddenly loose. Premium hinges balance both for smooth operation.

Q4: What materials work best for fill light bracket hinges?

Stainless steel offers excellent corrosion resistance but can gall under high pressure. Zinc alloy with plastic coating is cost-effective for indoor use. Glass-filled nylon is lightweight and corrosion-proof, with torques up to 8 N·m. The key is not the material alone but the friction surface pairing — engineered friction pads often outperform bare metal contacts. Consider your operating environment and load requirements.
