In today’s competitive manufacturing landscape, the subtle nuances of product interaction can significantly impact user perception and brand value. For engineers and procurement professionals, selecting the right components that deliver both functionality and a superior user experience is paramount. This article delves into the world of rotary dampers and friction hinges, highlighting how Janhinge, a leading OEM/ODM manufacturer, provides precision motion control solutions that elevate product quality, safety, and tactile experience.

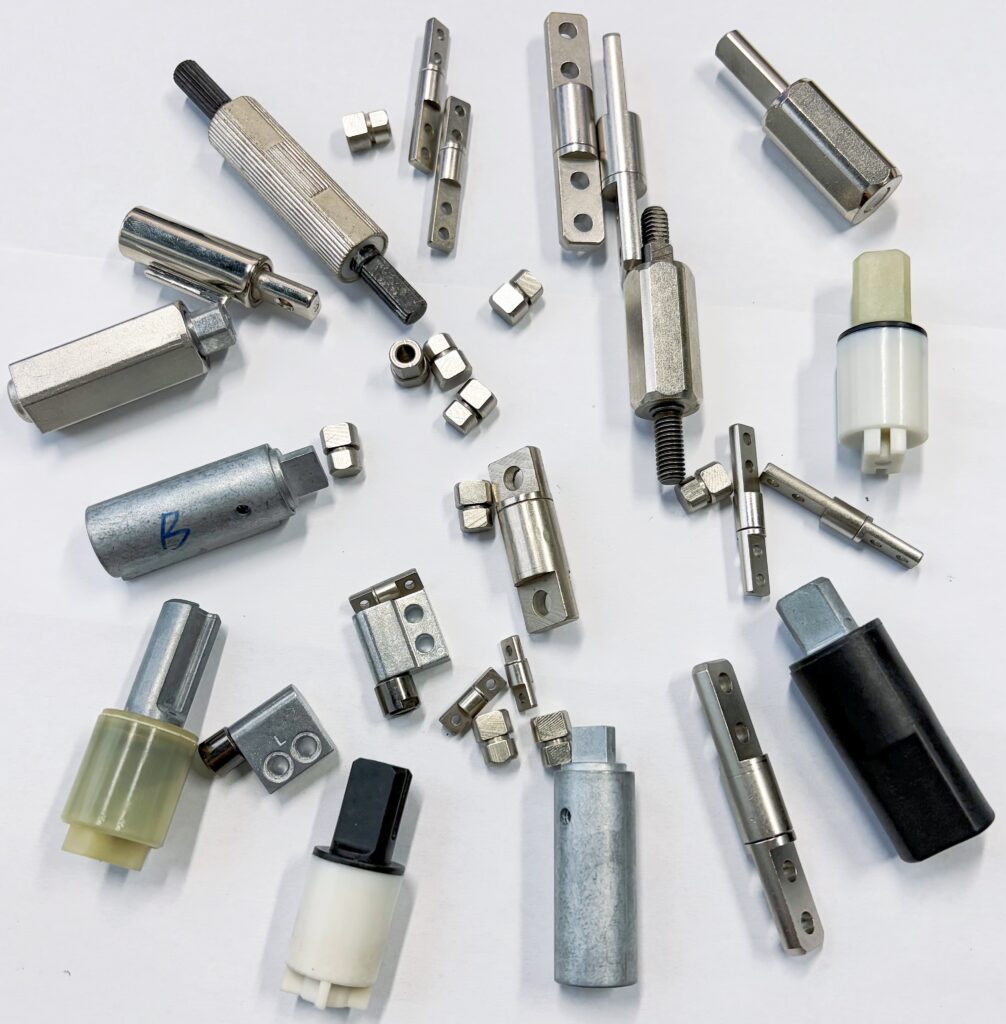

The Essence of Motion Control: Rotary Dampers and Friction Hinges
Janhinge, with over 21 years of expertise, specializes in integrating these critical components into diverse products. Our solutions are designed to absorb kinetic energy during opening and closing cycles, converting impact forces into controllable, smooth motion. The result? Soft-close, position-holding, quiet operation, and enhanced safety, all contributing to a superior product experience.
All Janhinge dampers and hinges are engineered for exceptional durability, boasting a lifespan of over 50,000 cycles with a minimal torque decay rate of only 15%. As a direct factory in China, we offer customized designs, precise torque solutions, 3D CAD models, and free samples to support your next hardware project.
Understanding Rotary Dampers: Smoothness and Protection
Rotary dampers are essential components for controlling the speed of motion, preventing abrupt impacts, and ensuring a gentle closing action. They are widely used in applications where a controlled, soft-close mechanism is desired, eliminating slamming noises and mechanical shock.
How They Work: The core principle of a rotary damper involves a high-viscosity silicone oil within a sealed unit. As a shaft rotates, it forces this oil through a restricted path, creating resistance. This resistance converts kinetic energy into steady mechanical motion, effectively slowing down the movement of a lid, door, or handle.
Benefits for Engineers:
•Product Protection: By mitigating impacts, rotary dampers significantly reduce wear and tear on product structures, extending their operational lifespan.
•Enhanced User Experience: The soft-close function provides a premium feel, making products seem more robust and sophisticated.
•Noise Reduction: Eliminating slamming sounds contributes to a quieter and more pleasant user environment.
•Safety: Controlled motion prevents sudden closures that could cause injury, particularly in applications involving heavy lids or covers.
Typical Applications: Rotary dampers find their utility across various industries, including:
•Home Appliances: Washing machine lids, oven doors, refrigerator drawers.
•Automotive: Glove compartments, sunglass holders, ash trays.
•Furniture: Cabinet doors, desk drawers, storage boxes.
•Medical Devices: Equipment covers, diagnostic machine panels.
Technical Considerations: When selecting a rotary damper, engineers must consider factors such as the required torque, the direction of damping (unidirectional or bidirectional), and the operating temperature range. Janhinge provides comprehensive technical support and tools for precise torque calculation to ensure optimal performance for your specific application.
The Science of Torque Calculation in Rotary Dampers
For engineers, the most critical aspect of integrating a rotary damper is ensuring the torque matches the application’s physical requirements. Torque is typically calculated based on the weight of the lid or component and the distance from the pivot point. The formula used is:
T (Torque) = M (Mass) × g (Gravity) × L (Length) / 2
Where:
•M is the mass of the lid in kilograms.
•g is the acceleration due to gravity (9.8 m/s²).
•L is the length of the lid from the hinge to the edge.
However, real-world variables such as the angle of opening, the desired closing speed, and environmental temperature can affect performance. At Janhinge, we utilize advanced simulation software to help our clients determine the exact damping profile required. We offer various torque ranges, from low-torque dampers for small electronic covers to high-torque solutions for heavy industrial equipment.
Material Selection and Longevity
The durability of a rotary damper is largely determined by its internal components and the quality of the damping fluid. Janhinge uses high-purity silicone oil, which maintains a stable viscosity across a wide temperature range (-40°C to +90°C). This stability is crucial for products used in extreme environments, such as automotive components or outdoor industrial panels.
The housing and rotor materials are also selected based on the application’s stress requirements. We offer options in engineering plastics for lightweight needs and zinc or stainless steel for heavy-duty industrial environments. Every batch of our dampers undergoes rigorous testing to ensure they meet the 50,000-cycle lifespan guarantee with less than 15% torque decay.
Exploring Friction Hinges: Position-Holding and Ergonomics
Friction hinges, also known as torque hinges, are designed to hold a component firmly in any desired position without the need for additional locking mechanisms. They provide constant resistance throughout their range of motion, allowing for effortless adjustment and stable positioning.
How They Work: Friction hinges utilize internal friction elements that create resistance against rotational movement. This constant friction counteracts the weight of the attached component, enabling it to remain at any angle across its 0° to 360° range without sliding or springing back.
Benefits for Engineers:
•Enhanced Positioning and Control: Allows users to adjust and maintain the position of screens, lids, or panels with precision.
•Improved Safety: Prevents components from unexpectedly falling or closing, reducing the risk of injury or damage.
•Ergonomic Advantages: Facilitates one-handed adjustment, improving user convenience and accessibility.
•Design Flexibility: Eliminates the need for prop arms, gas struts, or other bulky support mechanisms, allowing for sleeker and more compact product designs.
Typical Applications: Friction hinges are indispensable in products requiring adjustable positioning:
•Consumer Electronics: Laptop screens, tablet stands, monitor mounts.
•Medical Devices: Diagnostic equipment displays, patient monitor arms, surgical lighting.
•Industrial Equipment: Control panels, access doors, machine guards.
•Automotive: Infotainment screens, console lids.
Technical Considerations: Key parameters for friction hinge selection include the required holding torque, the number of cycles, and the desired feel of movement. Janhinge offers a wide range of friction hinges with customizable torque values to meet diverse application requirements.
Engineering Precision: How Friction Hinges Achieve Consistent Torque
The challenge in manufacturing friction hinges lies in maintaining consistent torque over thousands of cycles. Traditional hinges often suffer from “stiction” (static friction being significantly higher than dynamic friction), which leads to jerky movements. Janhinge’s proprietary friction technology utilizes specialized lubricant-impregnated materials and precision-engineered spring elements to minimize the gap between static and dynamic friction.
This precision ensures a “smooth-to-the-touch” feel, which is a key quality indicator for high-end consumer electronics and medical devices. When a surgeon adjusts a medical monitor or a designer tilts a high-resolution display, the movement must be effortless yet firm. Janhinge hinges are calibrated to within ±10% of the specified torque, providing the reliability that engineers demand.
Customization: Beyond Standard Specifications
We understand that standard components don’t always fit innovative designs. That’s why Janhinge offers extensive customization options for friction hinges:
•Variable Torque: Different torque values for opening and closing directions.
•Detent Features: Integrated “click” positions at specific angles.
•One-Way Friction: Resistance in one direction and free rotation in the other.
•Material Finishes: From matte black for tactical equipment to polished chrome for luxury interiors.
Damping Hinges: The Integrated Solution
For applications requiring both structural support and controlled motion, damping hinges offer an integrated solution. These hinges combine the functions of a traditional hinge with an internal damping mechanism, providing automatic soft-close capabilities.
How They Work: Damping hinges typically incorporate an integrated hydraulic or mechanical damper that generates resistance during the final degrees of closing (e.g., 15° to 30°). This ensures a slow, silent reset, preventing abrupt closures.
Benefits:
•Space Optimization: Eliminates the need for a separate external damper, saving valuable space within cabinet doors or equipment hatches.
•Automatic Soft-Close: Provides a seamless and quiet closing action.
•Enhanced Safety: Prevents hand pinching and reduces wear on the hinge mechanism.
Janhinge’s Competitive Edge for OEM Manufacturing and Procurement
Janhinge stands out as a preferred partner for OEMs and procurement professionals due to several key advantages:
•21+ Years of Expertise: Our extensive experience ensures a deep understanding of motion control challenges and effective solutions.
•Customized Solutions: We specialize in tailoring designs and torque specifications to precisely match your unique application requirements, providing a true custom torque solution.
•Comprehensive Support: From 3D CAD models for seamless integration into your designs to free samples for prototyping and testing, we provide robust support throughout your project lifecycle.
•Quality and Reliability: Our products are built to last, exceeding industry standards with over 50,000 cycles and minimal torque degradation.
•Direct Factory Advantage: As a direct manufacturer in China, Janhinge offers competitive pricing, streamlined communication, and efficient supply chain management, making us a strategic choice for OEM manufacturing.
Procurement Efficiency: Streamlining the Supply Chain with Janhinge
For procurement professionals, the value of a supplier goes beyond the product itself. It encompasses reliability, lead times, and cost-effectiveness. By partnering directly with Janhinge, procurement teams can eliminate the markups associated with distributors and middle-men.
Key Procurement Benefits Include:
•Vertical Integration: We control the entire manufacturing process, from mold design to final assembly, ensuring strict quality control and competitive lead times.
•Regulatory Compliance: Our factory is ISO 9001 certified, and all products comply with RoHS and REACH standards, simplifying the compliance process for global OEMs.
•Scalability: Whether you need a few hundred units for a niche medical device or hundreds of thousands for a consumer electronics launch, our production lines are designed for scalability.
•Technical Documentation: We provide full technical data sheets, 2D/3D drawings, and material certifications, reducing the administrative burden on your engineering and quality teams.
Janhinge Solutions Across Industries
Our motion control solutions are trusted by leading industries worldwide to enhance product quality, safety, and the everyday user experience. From the smooth operation of automotive interiors to the precise positioning of medical displays and the robust functionality of industrial equipment, Janhinge elevates the tactile experience of every opening and closing motion.
Frequently Asked Questions (FAQs)
1. What is the primary difference between a rotary damper and a friction hinge?
A rotary damper primarily controls the speed of motion, providing a soft-close effect and preventing slamming. A friction hinge, on the other hand, is designed to hold a component securely in any desired position, offering constant resistance throughout its range of motion.
2. How do I determine the correct torque for my application?
Selecting the correct torque involves considering the weight, size, and leverage of the component being controlled, as well as the desired speed or holding force. Janhinge provides technical guidance and tools, including torque calculation sheets, to assist engineers in making precise selections.
3. What are the key benefits of choosing Janhinge for custom motion control solutions?
Janhinge offers over two decades of expertise, customized designs, precise torque solutions, comprehensive technical support (including 3D CAD models and free samples), and a commitment to high-quality, durable products with over 50,000 cycle lifespans.
4. In which industries are Janhinge’s motion control solutions most commonly used?
Our solutions are widely adopted across automotive, healthcare, consumer electronics, home appliances, and furniture industries, where enhancing product quality, safety, and user experience through controlled motion is critical.
5. What is the expected lifespan and durability of Janhinge’s products?
Janhinge’s rotary dampers and friction hinges are designed for exceptional durability, with a lifespan exceeding 50,000 cycles and a torque decay rate of only 15% over their operational life, ensuring long-term reliability.
Conclusion
For engineers seeking to refine product functionality and procurement professionals looking for reliable, high-quality motion control solutions, Janhinge offers unparalleled expertise and a comprehensive range of rotary dampers and friction hinges. Our commitment to precision engineering, customization, and customer support ensures that your products not only meet but exceed market expectations. Partner with Janhinge to elevate your product’s performance and user experience.
