Introduction
In the rapidly evolving consumer electronics market, ultra-thin 2-in-1 laptops, foldable Bluetooth keyboards, and portable dual-screen monitors demand ultra-slim profiles. Modern mobile accessories require internal enclosures as thin as 3mm to 5mm while delivering high structural rigidity.
Users expect effortless, smooth lid opening and screen positioning. At the same time, the display cover must hold its angle firmly without drooping or shaking during touch input.
For structural design engineers, achieving smooth articulation within sub-5mm chassis profiles presents a severe mechanical challenge. Ultra-thin enclosures leave almost zero clearance for conventional support mechanisms.
A portable device’s hand-feel depends entirely on its pivot assembly. Selecting an inferior laptop friction hinge creates serious operational problems for OEMs. Budget hardware frequently suffers from rapid torque decay, wide manufacturing variances, and structural backlash.
When a micro pivot loses holding force after repeated folding, thin screens wobble during use. This leads to customer dissatisfaction, inflated product return rates, and long-term brand damage.
Conversely, choosing a precision laptop friction hinge guarantees smooth motion control, constant holding torque, and high fatigue resistance.
Friction hinges—also known as constant torque hinges or positioning hinges—are compact motion control components engineered to provide continuous resistance across their full range of motion.
This technical guide analyzes the mechanical requirements, failure modes, and sourcing strategies needed to optimize a laptop friction hinge assembly according to standards recognized by the Society of Manufacturing Engineers (SME).
Mechanical Architecture: Miniaturization without Torque Compromise
Designing an effective micro laptop friction hinge requires managing high mechanical resistance inside extremely restricted internal volumes. Compact consumer electronics feature chassis thicknesses under 5mm. Generating sufficient holding torque within micro joints demands precise manufacturing.
Micro Wrap-Around Band Technology
Conventional hinges utilize bulky spring washers that cannot fit thin device frames. Micro positioning joints rely on 360-degree wrapped spring bands clamped around micro center pins.
A high-performance laptop friction hinge utilizes micro center pins with diameters between Ø1.5mm and Ø3.0mm. High-quality friction hinges generate 0.5 Kgf-cm to 3.0 Kgf-cm of holding torque through precise interference fits, delivering smooth resistance without manual thumbscrews.
Torque-to-Thickness Optimization
Engineers must optimize the torque-to-volume ratio to prevent structural bulge in thin magnesium-aluminum or ABS enclosures.
- Single-Band Micro Hinges: Provide smooth, low-torque rotation ideal for ultra-light Bluetooth keyboards and slim protective covers.
- Dual-Band Parallel Hinges: Provide balanced torsional load distribution, making them perfect for 2-in-1 convertible laptops and portable monitors.
Material Selection and Tribology
Substandard micro hinges use cheap carbon steel bands that deform under continuous radial tension. Premium manufacturers construct every laptop friction hinge using high-grade SK5 or SK7 spring steel alloys.
These micro-components undergo specialized heat treatment and precision quenching to maintain yield strength. Advanced surface polishing prevents “stiction”—the sudden jerky movement during initial opening—ensuring smooth static and dynamic friction balance.
Overcoming Top 3 Failures in Foldable & Ultra-Thin Accessories
Analyzing field return data helps engineering teams prevent structural failures early in product development. Selecting a verified laptop friction hinge eliminates three primary failure modes.
1. Lid Wobble and Structural Micro-Play
The most common complaint in thin convertible laptops is screen wobble during touchscreen interaction. Low-cost hinges develop axial clearance within 1,000 opening cycles due to rapid pin wear.
Precision manufacturing maintains zero axial play across extended lifecycles. By applying strict dimensional controls, a quality laptop friction hinge keeps torque decay under <5% over 20,000 operations, keeping thin screens completely stable.
2. Thermal Softening in Compact Enclosures
Dense battery layouts and compact motherboards generate high localized heat inside slim devices. Low-grade mineral grease breaks down under heat, causing oil migration and reduced joint tension.
A high-performance laptop friction hinge utilizes high-viscosity synthetic grease. Specialized lubricant formulations preserve stable internal friction across operating temperatures ranging from -20°C to +85°C.
3. Casing Cracking Due to Wide Torque Variances
Inconsistent component quality causes severe structural failures during automated assembly. Uncertified suppliers frequently ship micro hardware lots with a torque tolerance variance exceeding ±25% to ±40%.
These extreme variations create severe production issues:
- Over-Torque Units: Excessive stiffness stresses thin plastic or alloy housings, causing stress cracks around mounting screws during assembly.
- Under-Torque Units: Loose joints pass initial checks but fail final quality inspections when covers fail to remain open.
Leading suppliers maintain strict laptop friction hinge tolerances within ±5% to ±10% of nominal ratings, ensuring fast assembly times and zero line scrap.
OEM/ODM Sourcing Checklist for Portable Electronics
Purchasing leads and mechanical engineers must evaluate long-term reliability during hardware vendor selection. Use this practical checklist during vendor audits.
1. Torque Calculation for Thin Displays

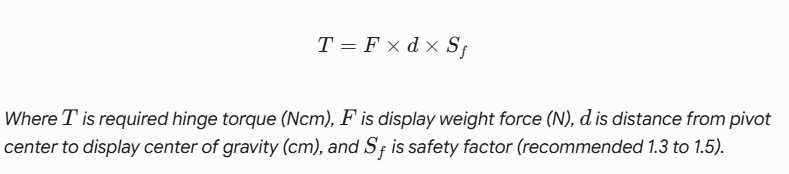

Before finalizing CAD specs, verify holding force requirements using standard mechanical equations:
Calculating torque requirements early prevents under-specifying a laptop friction hinge during 3D modeling.
2. Hollow-Shaft FPC Wire Routing
Internal wiring is essential for dual-screen devices and illuminated keyboards. Partnering with a supplier that offers a custom positioning hinge allows you to integrate hollow center shafts.
This enables delicate flexible printed circuits (FPC) to pass directly through the pivot axis without pinching during 360-degree rotation.
3. Sweat and Corrosion Resistance
Portable electronic devices face frequent hand contact, humidity, and sweat exposure. Thin plating degrades quickly, leading to surface rust and joint binding.
Ensure your supplier applies zinc, nickel, or black oxide plating on every laptop friction hinge batch to pass 24-hour to 48-hour neutral salt spray tests (ASTM B117).
Quality Management: Why In-House Precision Control Matters
Achieving smooth hand-feel and long lifecycle performance requires total control over every manufacturing phase. Outsourcing critical steps creates dangerous quality variances across production lots.
High-quality component manufacturers maintain complete vertical integration. Managing micro-toolmaking, stamping, die-casting, injection molding, heat treatment, and assembly under one roof ensures absolute raw material traceability and consistent spring tempering for every laptop friction hinge unit.
Furthermore, advanced facilities operate certified quality management systems adhering to international frameworks like ISO 9001 Quality Standards.

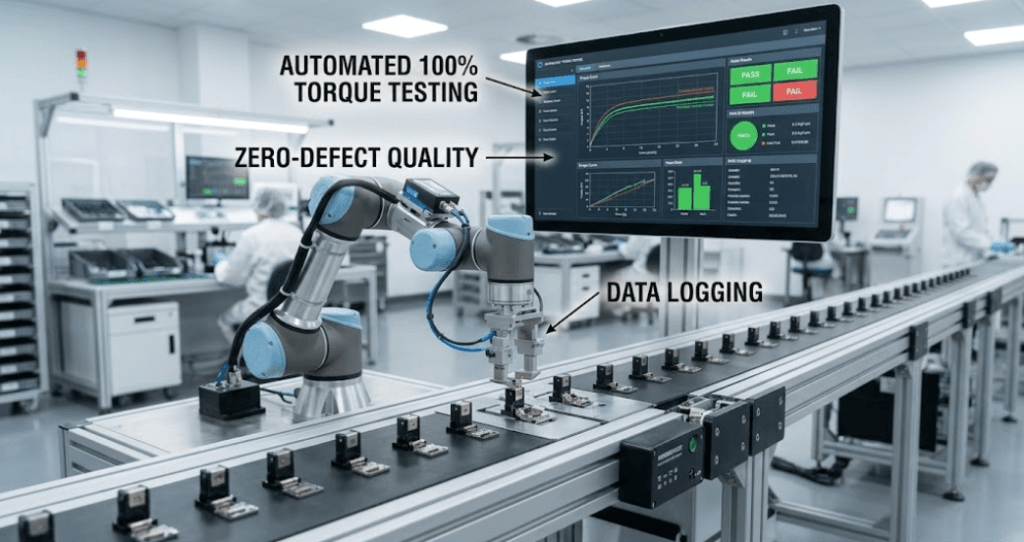

Rather than relying on periodic manual sampling, automated 100% micro-torque testing equipment inspects every laptop friction hinge before dispatch. Out-of-spec parts are automatically rejected, guaranteeing zero-defect delivery to global assembly lines.
Conclusion
In the competitive portable electronics market, a laptop friction hinge is not just a hidden mechanical fastener—it is the core component that defines product tactile feel, structural integrity, and user satisfaction.
Minor initial savings gained by purchasing low-cost micro components are quickly wiped out by factory assembly defects, housing cracks, and warranty returns.
By partnering with a precision manufacturer that prioritizes tight torque tolerances, high-grade spring steel alloys, and 100% automated quality inspection, OEMs can eliminate cover wobble, streamline assembly efficiency, and deliver ultra-thin devices that stand the test of time.
Developing an ultra-thin laptop, foldable Bluetooth keyboard, or portable monitor? Contact the engineering team at JAN today to request 3D STEP files, micro torque calculations, or free prototype samples for your laptop friction hinge projects!
FAQ
Q1: What torque range is required for a micro laptop friction hinge in thin devices?
A1: Ultra-thin foldable devices typically require a laptop friction hinge rated between 0.5 Kgf-cm and 3.0 Kgf-cm, depending on cover weight and screen size, ensuring smooth movement without housing stress.
Q2: How small can a laptop friction hinge be manufactured for sub-5mm chassis profiles?
A2: Micro positioning joints can be engineered with outer diameters under 3.0mm, making a laptop friction hinge thin enough to integrate into 3mm to 5mm ultra-slim keyboard and screen enclosures.
Q3: How do you prevent micro friction hinges from losing tension in foldable keyboards?
A3: Tension loss is prevented by using heat-treated SK5/SK7 spring steel bands, high-viscosity synthetic grease, and precision interference fits. This combination limits torque decay to less than 5% across 20,000+ adjustment cycles.
Q4: Can JAN manufacture hollow-shaft micro friction hinges for FPC cable routing?
A4: Yes. JAN provides complete OEM/ODM engineering support. We can manufacture a custom positioning hinge with hollow center shafts, custom mounting tabs, and precise torque settings for internal FPC wiring.
