If you have ever designed a tablet stand, you know the problem. The prototype works beautifully in the lab. The hinge holds the tablet at every angle. Then you ship units to customers — and within weeks, the complaints start. The tablet sags when touched. The angle drifts during video calls. The hinge feels loose and unstable.
This is not a quality control issue. It is a design specification issue. And it is one of the most common — and most preventable — failures in tablet stand engineering.
This guide is written for engineers, procurement professionals, and decision-makers who need to understand how to select damping hinges that deliver anti-sag performance and stable positioning over the life of the product. We will cover the physics of torque calculation, the key parameters that prevent sagging, common mistakes, and how to specify hinges that actually work — in production, not just in the lab.
The Core Challenge: Gravity Never Takes a Day Off

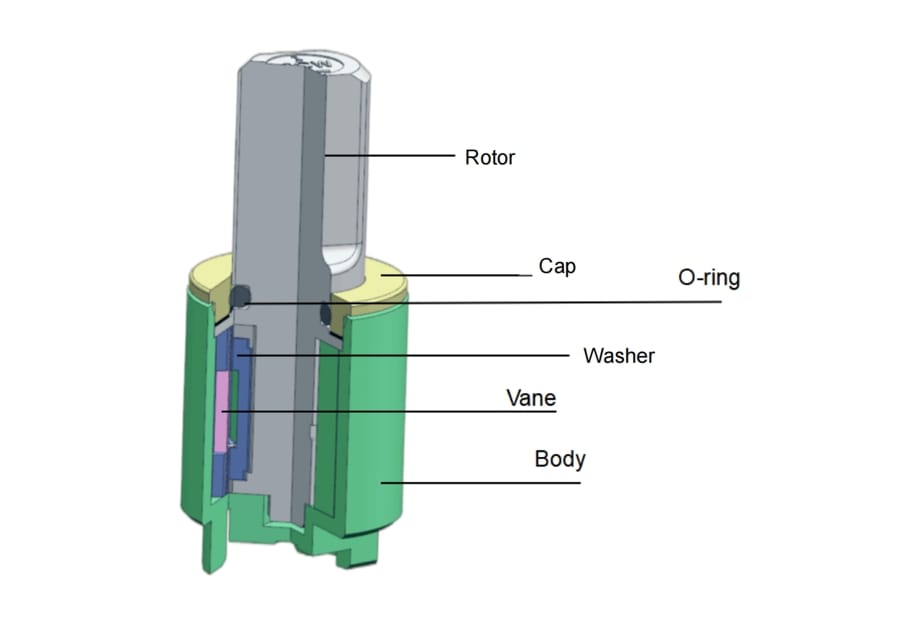

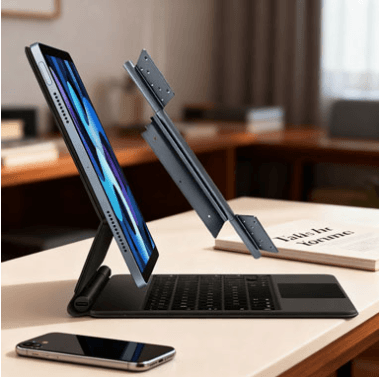

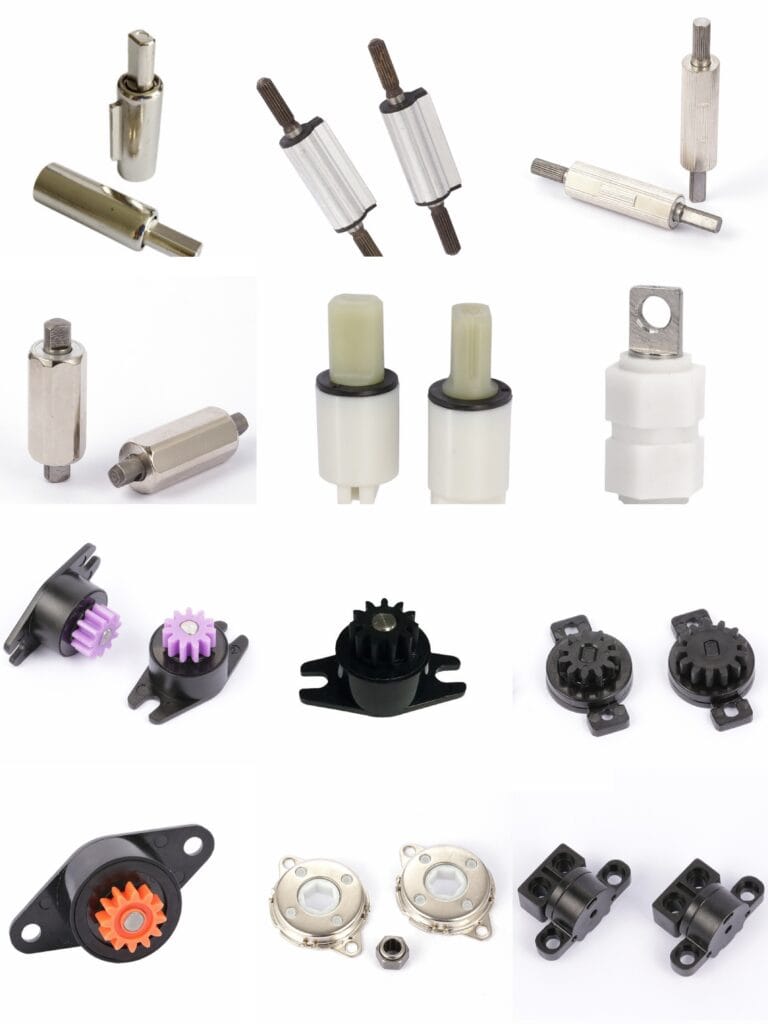

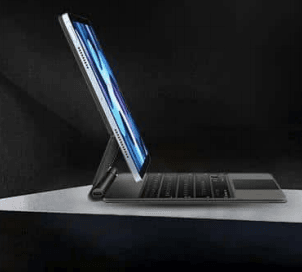

A tablet stand is a deceptively simple device. A base, an arm, a hinge, and a cradle to hold the tablet. But the physics are unforgiving.
When a tablet is mounted on a stand, gravity exerts a continuous downward force on the hinge. The moment arm — the distance from the hinge pivot to the tablet’s center of gravity — multiplies that force into torque. If the hinge’s holding torque is less than this gravitational torque, the stand sags. If it is only marginally higher, it may hold initially but fail after wear and temperature changes.
The challenge is amplified by touchscreen interaction. Users tap, swipe, and type on the tablet while it is mounted. Each touch applies dynamic force to the screen, which translates into additional torque on the hinge. A hinge that holds a static tablet may fail under the repetitive loading of touchscreen use.
This is why anti-sag design is not optional — it is the core engineering requirement for any tablet stand that aspires to professional quality.
The Physics: Calculating the Torque You Need
Before you can select a hinge, you need to calculate the required torque. The fundamental formula used by industry leaders like Sugatsune is straightforward:
Where:
- T = required torque (N·m)
- W = weight of the tablet (kg)
- L = distance from the hinge pivot to the center of gravity (m)
- θ = angle between the tablet and the horizontal plane
The moment is at its maximum when the center of gravity is horizontal relative to the rotation axis. At that position, cos θ = 1, so the formula simplifies to T = W × L.
Worked Example: A Typical 10-Inch Tablet
Consider a 10-inch tablet weighing 0.6 kg (about 1.3 lbs). The tablet’s center of gravity is approximately at its geometric center — typically about 0.12 meters from the hinge pivot. At the horizontal position:
T = 0.6 × 0.12 = 0.072 N·m
This is the theoretical minimum. But in the real world, you need margin.
The Safety Factor: Why Theoretical Torque Is Never Enough
Theoretical torque is just the starting point. In real-world applications, you must apply a safety factor to account for:
- Manufacturing tolerances: Every hinge has a torque tolerance band — typically ±15% to ±25%. A hinge rated at 0.1 N·m with ±20% tolerance could deliver as low as 0.08 N·m.
- Wear over time: Torque degrades with use. Quality hinges are tested to stay within spec for 20,000 cycles, but some degradation is inevitable.
- Temperature effects: Torque changes with temperature. Many hinges have an operating range of 0°C to 40°C, and performance can vary significantly outside that range.
- Dynamic loading from touch interaction: Taps and swipes add momentary loads.
Most engineers use a safety factor of 1.5 to 2.0. For our 0.6 kg tablet example, the target torque should be:
0.072 × 1.5 = 0.108 N·m (minimum)
For a 13-inch tablet weighing approximately 0.9 kg, the required torque per hinge is significantly higher. Industry sources indicate that for a 13-inch screen, each hinge must provide at least 4.5 kgf-cm (approximately 0.44 N·m) of torque to ensure the device does not collapse during touch operations.
The Two-Hinge Factor
Most tablet stands use two hinges — one on each side of the stand. The required torque is distributed across both hinges. For identical hinges, divide the total required torque by the number of hinges.
If our 0.6 kg tablet requires 0.108 N·m total, each hinge needs at least 0.054 N·m.
However, this assumes perfect load sharing. In practice, if the hinges are not perfectly matched or aligned, one hinge may bear more load than the other. This is why matched pair delivery — where the supplier measures and pairs hinges with similar torque values — is important for multi-hinge applications.
Key Parameters for Anti-Sag Design
1. Torque Value: Get It Right the First Time
The torque value is the single most important specification. For tablet stands, typical torque requirements fall into these ranges:
| Tablet Size | Typical Weight | Recommended Torque (per hinge) |
|---|---|---|
| 7-8 inches | 0.3 – 0.4 kg | 0.05 – 0.15 N·m |
| 9-10 inches | 0.5 – 0.7 kg | 0.10 – 0.30 N·m |
| 11-13 inches | 0.7 – 1.0 kg | 0.30 – 0.50 N·m |
| Large tablets / displays | 1.0+ kg | 0.50 – 1.50+ N·m |
HTAN offers torque hinges ranging from 0.3 N·m for miniature electronics to 50+ N·m for industrial panels. Southco’s ST series provides positioning torques from micro-torque levels of 0.35 kg-cm up to 51 kg-cm.
LEECO offers symmetric torque options from 0.4 to 0.9 N·m at 0.1 N·m intervals, allowing precise matching to your calculated requirement.
2. Torque Tolerance: The Hidden Variable
Every friction hinge has a torque tolerance. Standard tolerance over life is typically ±15% with zinc components and ±20% with insert plastic molded parts. Southco’s E6/ST series is rated to stay within ±20% of rated torque value for 20,000 cycles.
What this means in practice: If you specify a 0.3 N·m hinge with ±20% tolerance, individual hinges can deliver anywhere from 0.24 to 0.36 N·m. If your application requires at least 0.25 N·m, the low end of the tolerance band (0.24 N·m) is insufficient — you need to specify a higher nominal torque.
The rule: Always design for the low end of the tolerance band, not the nominal value.
3. Cycle Life: How Long Should It Last?
For a tablet stand that is adjusted daily — perhaps 5 to 10 times per day — the hinge should survive at least 10,000 cycles, which is roughly 3-5 years of typical use. Premium hinges are tested to higher standards:
- Southco E6/ST series: 20,000 cycles within ±20% of static torque
- LEECO friction hinges: 25,000+ cycles within ±20% of static torque
- Sugatsune torque hinges: 20,000+ open/close cycles
- HTAN hinges: Up to 50,000 cycles
4. Temperature Range: Don’t Forget the Environment
Tablet stands are used in a variety of environments — from climate-controlled offices to outdoor kiosks and vehicles. Temperature affects hinge performance.
Southco’s E6/ST series has an operating temperature range of -5°C to 65°C. Sugatsune’s HG-S15-16C is rated for 0°C to 40°C.
If your tablet stand will be used outdoors or in vehicles, specify a hinge with a wider temperature range. If the stand will be used in cold environments, be aware that torque typically increases at low temperatures as lubricants thicken — which can make adjustment difficult.
5. Static vs. Dynamic Torque: The Feel Factor
There is an important distinction between static torque (the torque required to hold the panel stationary) and dynamic torque (the torque required to move the panel during adjustment).
A hinge with high static torque but low dynamic torque offers stable positioning with easy adjustment. A hinge where static and dynamic torque are close together provides consistent feel throughout the motion range.
Reell’s clip technology, for example, provides a “close and predictable relationship between static and dynamic torque”, resulting in smooth, jerk-free movement. This is particularly important for tablet stands, where users expect effortless one-handed adjustment.
6. Backlash and Spring-Back: The Precision Factors
Backlash is the free play or slop in the mechanism before the hinge engages. Spring-back is the small but perceptible movement that happens when you release a panel after adjusting it.
For tablet stands, both are undesirable. A stand with backlash feels loose and imprecise. A stand with spring-back drifts after adjustment, requiring repeated positioning attempts.
Southco’s constant torque hinges offer zero-drift and backlash-free performance, even under vibration or dynamic loads. Sugatsune’s torque hinges provide free-stop functionality that “prevents unwanted movements”.
Preventing Stick-Slip: The Motion Quality Challenge
One of the most frustrating user experiences is a hinge that “sticks” then “jumps” during adjustment. This is called stick-slip — the difference between breakaway torque (the force required to start movement) and running torque (the force required to sustain movement).
Stick-slip occurs when static friction is significantly higher than dynamic friction. The user applies force, nothing happens, then the hinge suddenly releases and the tablet lurches to a new position.
The solution is a hinge design where breakaway torque is close to dynamic torque. Reell’s clip technology, for example, provides “convenient jerk-free movement” because the breakaway torque is “really close to the dynamic torque”.
When selecting a hinge for a tablet stand, ask the supplier for data on the relationship between static and dynamic torque. A wide gap indicates potential stick-slip issues.
Material Selection: What Works for Tablet Stands
Sugatsune offers torque hinges with bodies made of 430 stainless steel. Southco offers plastic, aluminum, stainless steel, and die-cast zinc construction options.
Common Mistakes in Tablet Stand Hinge Selection
Mistake 1: Specifying Torque Equal to Theoretical Load
Do not select hinge torque equal to the theoretical minimum. The tablet’s weight, the moment arm, and the safety factor must all be considered. A hinge that barely holds today will fail after wear and temperature changes.
Mistake 2: Ignoring Torque Tolerance
A ±20% tolerance means your “0.3 N·m” hinge could be 0.24 N·m. Design for the low end of the tolerance band.
Mistake 3: Testing Without the Full Assembly
Always test with the actual tablet — including any case, screen protector, or accessories that will be used in production. A hinge that works with a bare tablet may fail with a heavy protective case.
Mistake 4: Forgetting About Touchscreen Interaction
Tablets are touched, tapped, and swiped. These dynamic loads add to the static load. A hinge that holds a static tablet may fail under repetitive touchscreen use. Industry testing often references touch panel pressure testing, requiring that the screen displacement angle remains less than 1 degree when subjected to a finger tap force of approximately 200g.
Mistake 5: Using a Single Hinge for a Wide Stand
For stands wider than about 100mm, use two hinges — one on each side — to distribute the load and prevent twisting. When using two hinges, ensure the torque values are matched.
The Selection Process: A Step-by-Step Approach
Step 1: Define the Load
Measure the weight of the tablet (including case and accessories). Locate the center of gravity — for a uniformly distributed tablet, this is the geometric center.
Step 2: Calculate the Required Torque
Use T = W × L × cos θ for the worst-case angle (usually horizontal). Add a safety factor of 1.5 to 2.0.
Step 3: Divide by the Number of Hinges
If using two hinges, divide the total torque by two.
Step 4: Account for Tolerance
Add additional margin for the torque tolerance band (±15% to ±20%).
Step 5: Specify Cycle Life and Temperature Range
Define how many adjustments the hinge must survive and the operating temperature range.
Step 6: Request Samples and Test
Always test with the actual tablet and use case. Test for sagging, stick-slip, and touchscreen stability.
Step 7: Qualify the Supplier
Ask for cycle test data, torque tolerance data, and material certifications.
FAQ
Q1: How do I calculate the torque needed for a tablet stand hinge?
Use the formula T = W × L × cos θ, where W is the tablet weight, L is the distance from the hinge pivot to the tablet’s center of gravity, and θ is the angle from horizontal. The worst-case scenario is when the tablet is horizontal (cos θ = 1). Always add a safety factor of 1.5 to 2.0 to account for wear, temperature, and manufacturing tolerances. For a 0.6 kg tablet with CG 0.12 m from the pivot, the required torque is 0.072 N·m minimum, or approximately 0.11–0.14 N·m with safety factor.
Q2: What torque tolerance should I expect from a tablet stand hinge?
Standard torque tolerance is ±15% to ±20%. Southco’s E6/ST series and LEECO’s friction hinges are rated within ±20% of static torque specification. Premium suppliers like Reell can achieve ±15% with zinc components. Always design for the low end of the tolerance band, not the nominal value.
Q3: Why does my tablet stand sag after a few months of use?
Sagging is typically caused by torque decay — the gradual reduction in holding torque due to wear of friction materials, pre-load loss from spring fatigue, or lubricant migration. This is why a safety factor is critical: a hinge that barely holds on day one will fail after wear. Quality hinges from reputable manufacturers are tested to 20,000+ cycles with torque remaining within specification. If your stand sags prematurely, the hinge was likely underspecified for the application.
Q4: What is the difference between static and dynamic torque, and why does it matter for tablet stands?
Static torque is the torque required to hold the tablet stationary at a given angle. Dynamic torque is the torque required to move the tablet during adjustment. For tablet stands, users expect smooth, one-handed adjustment — which requires a close relationship between static and dynamic torque. A large gap causes stick-slip (jerky movement). Premium hinge designs, such as Reell’s clip technology, provide a close and predictable relationship between static and dynamic torque.
Summary
Selecting the right damping hinge for a tablet stand is not complicated — but it requires attention to detail. Calculate the required torque using T = W × L × cos θ, add a safety factor, account for torque tolerance, and specify cycle life and temperature range. Test with the actual tablet and use case. And never assume that “close enough” on torque will work in production.
The hinge that holds on day one is not the achievement. The hinge that still holds on day 1,000 — through thousands of adjustments, temperature changes, and touchscreen interactions — that is where the real value lies.
